Aopha -- UV3200G Roll to Roll UV Printer
Model | Aopha -- UV3200G |
Printhead | Epson T3200 / Ricoh G5 |
Ink droplet | 3.5 pl |
Printhead quantity | 2-8 |
Color | 5 |
Speed | 6 pass 32 sqm/hr |
8 pass 24 sqm/hr | |
12 pass 15 sqm/hr | |
Resolution | 720dpi 1080dpi 1440dpi |
Adjusttable height | 1.5-5mm |
Maximun printhead width | 3.2 m |
Ink type | Use environment-friendly, beautiful color, outdoor durability UV ink (LED ink optional) |

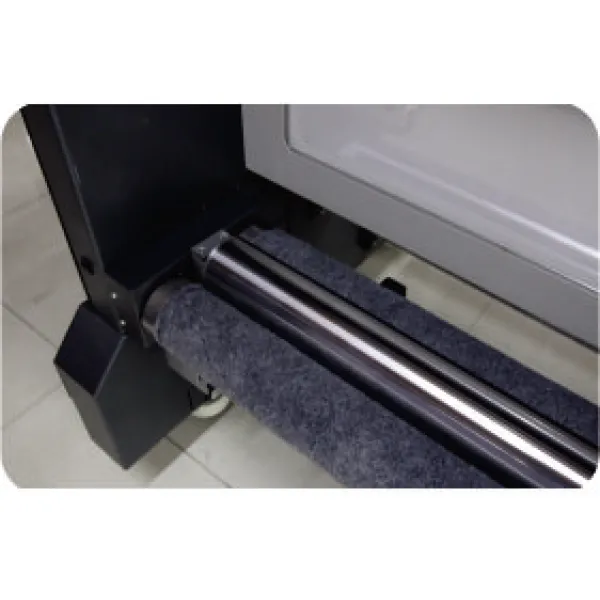

Feeding & take-up system | Auto feeding & take-up system |
Material | Flexible film, PET, Ceiling film, Flex banner, Backlit banner, PVC banner etc. |
Photo file format | TIF, JPEG, WIN10, EPS, PDF |
RIP software configuration | Maintop/ Print Factory / Photoprint |
Color configuration | 4/5 colors, white (optional) |
Media System | Achieved to a maximum width of 3.2 meters |
Power & Electric require | 3KW, AC 220±10%， 50HZ±1HZ |
UV lamp system | Led UV cold light source, each LED UV lamp energy adjustable, suitable for variety of different material requirements |
Work environment require | Temperature: 20-30 °C Humidity: 35% RH -- 65% RH (Non-condensing) |
Print interface | USB |
Color control | International standard ICC color control. Curve and density can be adjustable by user and other functions |
Machine packing size | 4850*1240*1620 mm |
Gross weight | 950 kgs |
